| Manufacture |

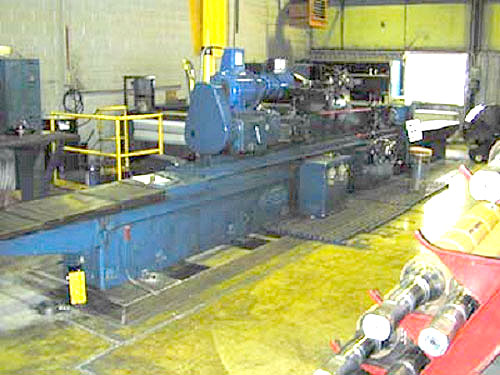

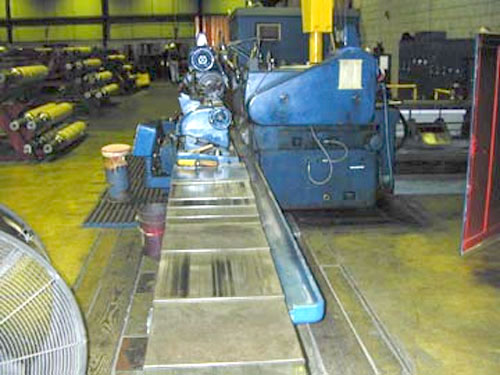

Naxos-Union / 1963 |
| |

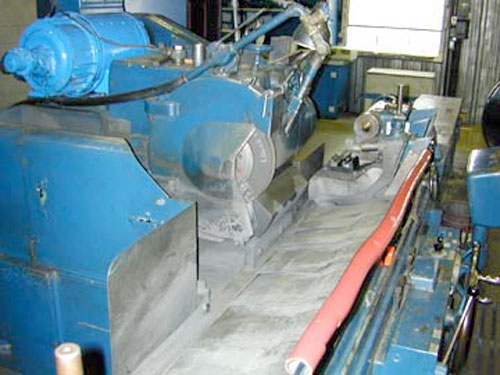

| Grinding Wheel |
23.625" max diam
19.625" min diam
1.625" thick, 8" bore
|
| |
| Max Roll Diameter to be Ground |
19.625" |
| |
| Actual Use |
9.5" - 10.5" work rolls |
| |
| Distance Between Centers |
138" |
| |
| Crowning Capability |
Installed |
| |
| Max Load Weight |
4400 lbs |
| |
| Equipment |
|
| - Grinding Wheel |
|
| - Grinding Wheel Dreesing Device |
Diamond not included |
| - Crowning Device |
Complete |
| - Wet Grinding |
Arranged for wet, with pump |
| - Electrical |
440VAC, 3 phase, 60Hz |
| |
Ward Leonard table drive |
| |

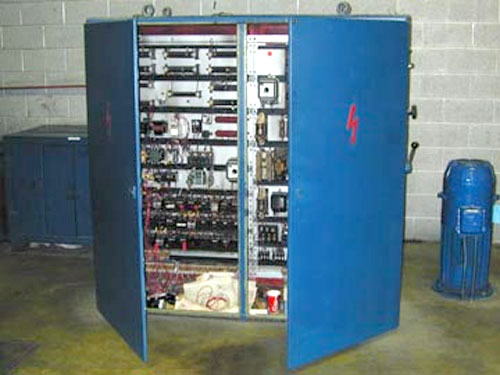

Switch cabinet |
| |
Grinding wheel tachometer |
| |
Work headstock tachometer |
| - Grinding Wheel Drive |
9.5 kW, DC shunt, 1000/1400rpm |
| |
Slide bearings |
| - Work Rotation Drive |
2.5 kW, DC shunt, 700/1700rpm |
| |
Slide bearings |
Sold "as is, where is" installed, USA
|
